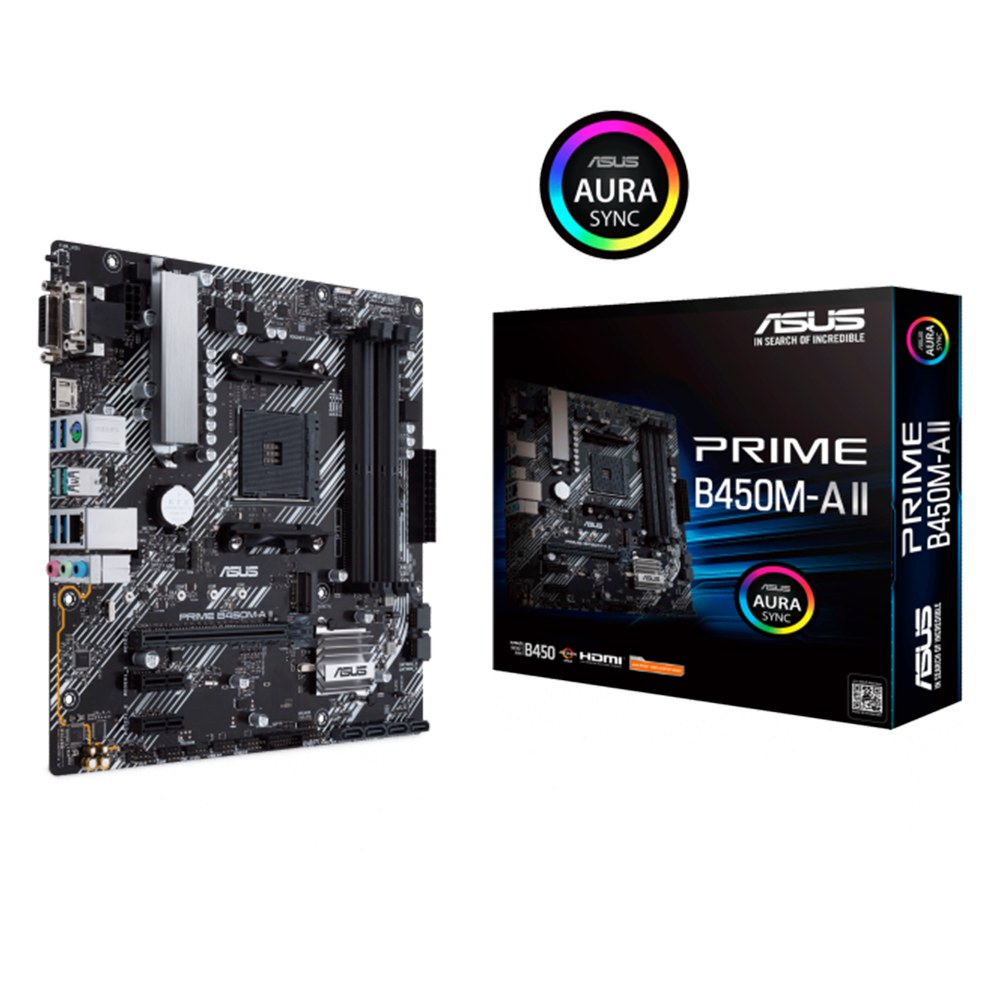

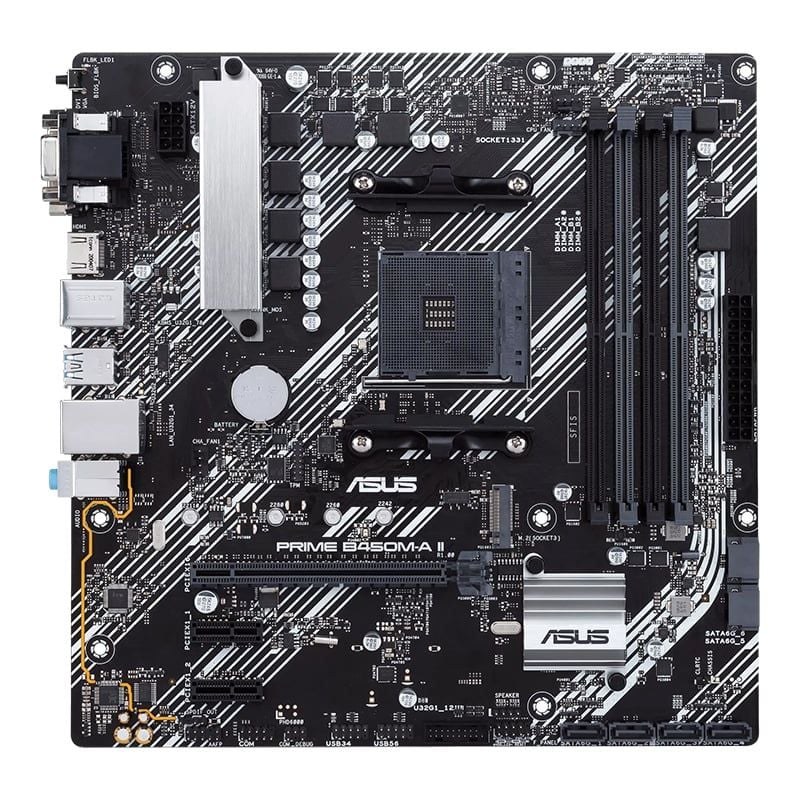

Tên gọi | ASUS PRIME B450M-A II |
CPU hỗ trợ | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * |
Chipset / Socket | AMD B450 |
Bộ nhớ (RAM) | 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU. |
Công nghệ đa GPU | AMD 2-Way CrossFireX Technology |
Khe cắm mở rộng | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
AMD B450 chipset
2 x PCIe 2.0 x1 |
LAN / Wireless | Realtek® RTL8111H |
Âm thanh | Realtek® ALC887 8-Channel High Definition Audio CODEC |
Cổng kết nối (Internal) | 1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
1 x RGB Header |

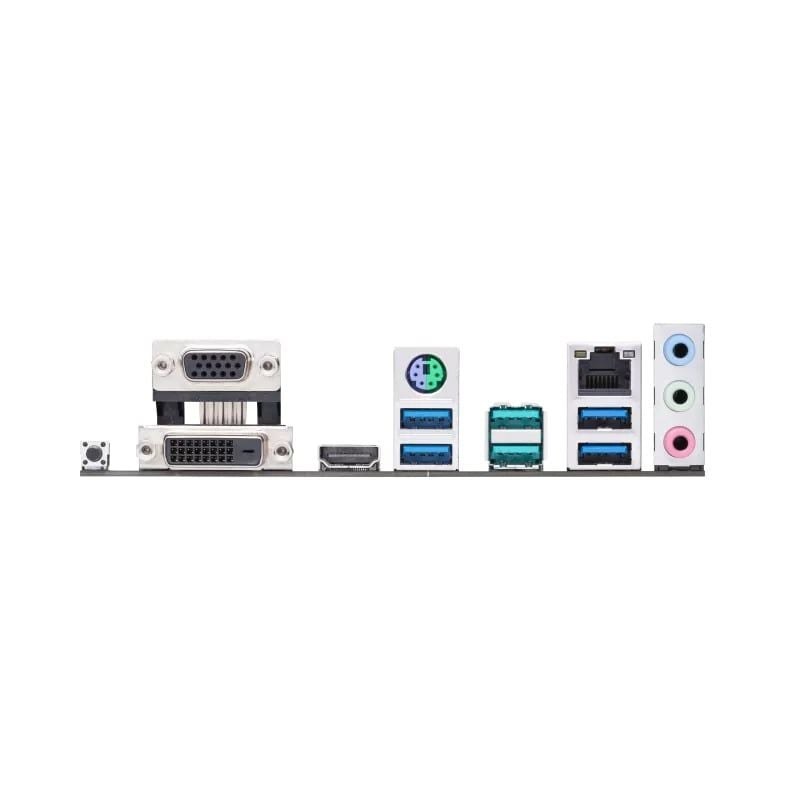

Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x BIOS FlashBack™ Button(s) |
Công nghệ độc quyền | ASUS 5X Protection III
ASUS Exclusive Features
ASUS Quiet Thermal Solution
ASUS EZ DIY
ASUS Q-Design |
Phụ kiện đi kèm |
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
|
Hệ điều hành khuyến nghị | Windows® 10 64-bit |
Chuẩn kích cỡ | mATX Form Factor |
