Mainboard B550 Tomahawk Mag Msi

Sản phẩm

Mainboard - Bo mạch chủ

Tên Hãng

MSI

Model

MAG B550 TOMAHAWK

CPU hỗ trợ

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.

Chipset

AMD B550 Chipset

RAM hỗ trợ

4 x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE

Khe cắm mở rộng

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2

2x PCIe 3.0 x1 slots

Đa card màn hình

Supports 2-Way AMD CrossFire™ Technology

Hình ảnh

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1

Maximum shared memory of 2048 MB

Available for the processor with integrated graphics.

Lưu trữ

6x SATA 6Gb/s ports

2x M.2 slots (Key M)

M2_1 slot (from AMD Processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

The supported specification depends on installed processor.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Âm Thanh

Realtek® ALC1200 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1x Realtek® RTL8125B 2.5Gbps LAN controller

1x Realtek® RTL8111H 1Gbps LAN controller

Cổng kết nối ( I/O bên trong)

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

6x SATA 6Gb/s connectors

2x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

1x TPM module connector

1x Clear CMOS jumper

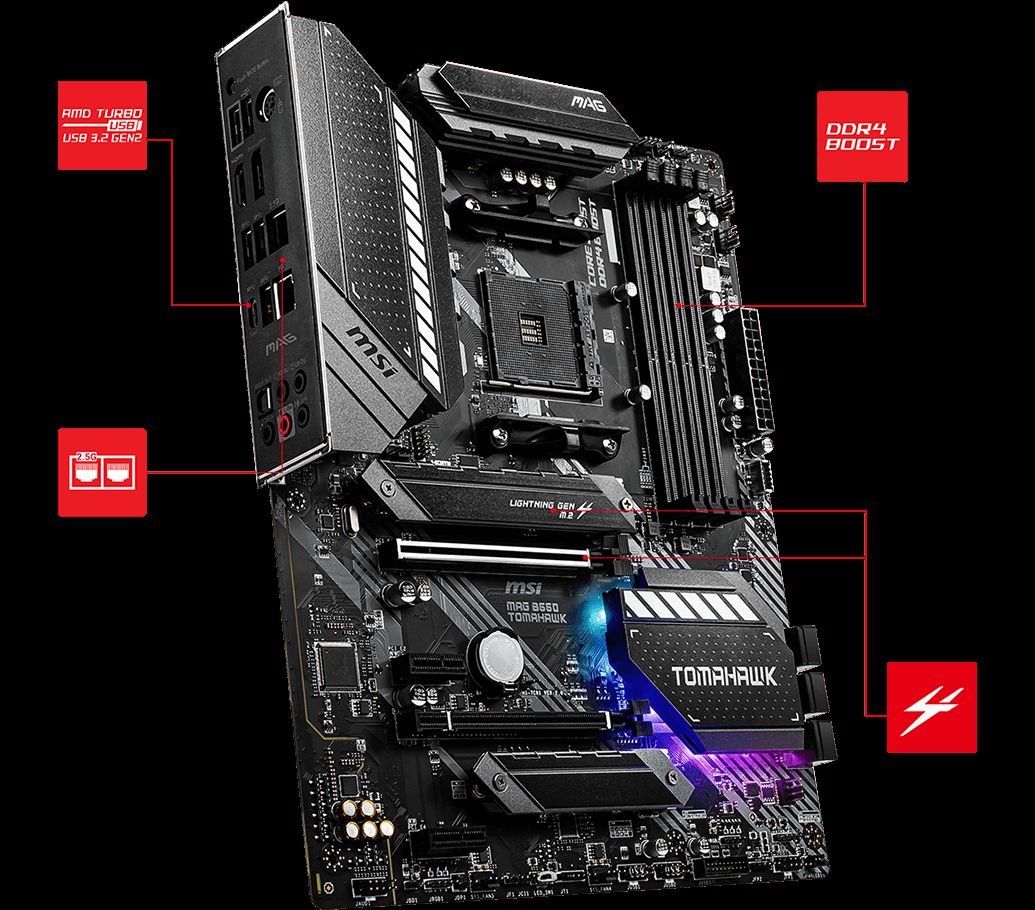

1. PS/2 Combo Port
2. DisplayPort
3. 5G LAN Port
4. 1G LAN Port
5. HD Audio Connectors
6. Flash BIOS Button
7. USB 2.0 Port
8. HDMI Port
9. USB 3.2 Gen 1 5Gbps (Type-A)
10. USB 3.2 Gen 2 10Gbps (Type-A + Type-C)
11. Optical S/PDIF OUT

Kích cỡ

ATX Form Factor

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
